SD13D 1.0 Ton Mini Excavator
Original price was: $3,200.00.$1,650.00Current price is: $1,650.00.

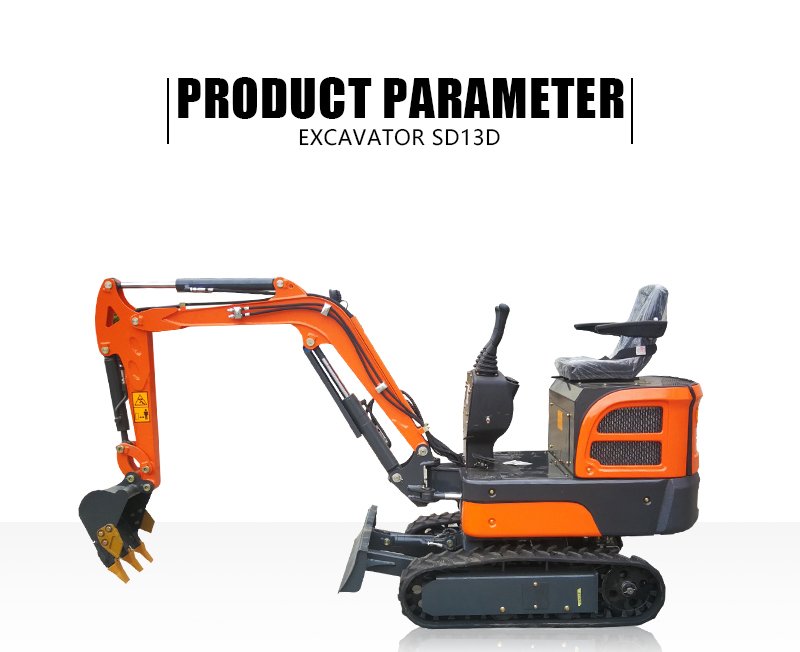

PARAMETER
|
Machine parameters |
|
| Model | SD13D |
| Operating Weight | 1180Kg |
| Bucket Capacity | 0.028m³ |
| Rated Power | 14 kw/11.2 kw |
| Max.Hydraulic System Pressure | 16mpa |
| Max. Grade ability | 30° |
| Max. Ground Pressure | 18.9N/m² |
| Max Walking Speed | 2.1Km/h |
| Max. Traction | 9.2KN |
| Platform Rotary Speed | 9-11r/min |
| Boom swing function | yes |
|
Dimensions |
|
| Overall Length | 2770mm |
| Overall Width | 925mm |
| Overall Height | 1550mm/2100(Chair/Roof) |
| Arm Length | 800mm |
| Boom Length | 1490mm |
| Track Length | 1210mm |
| Track Width | 180mm |
| Ground Clearance | 240mm |
| Platform Width | 920mm |
| Platform Ground Clearance | 420mm |
| Bucket Width | 370mm |
|
Working range |
|
| Max. Digging Height | 2650mm |
| Max Digging Depth | 1650mm |
| Max. Digging Radius | 2950mm |
| Max Dumping Height | 1750mm |
| Min. Radius of Gyration | 1150mm |
| Radius of Tail Gyration | 680mm |
|
Machine configure |
|
| Engine Model | Yanmar 3TNV70 / 3TNV74 |
| Main valve | Beifang |
| Main Pump | Tianji |
|
Rotation Motor |
SANYO |
|
Walking Motor |
SANYO |
1.0 Ton Mini Excavator – Model SD13D
Compact Power, Built for Precision.
The SD13D Mini Excavator delivers outstanding performance in tight spaces while offering the durability and power expected from a full-sized machine. With an operating weight of just 1,180 kg, it’s ideal for landscaping, small construction jobs, trenching, and agricultural use.
Key Features:
-
Efficient Yanmar Engine: Powered by a reliable Yanmar 3TNV70 or 3TNV74 engine with rated power of 14 kW / 11.2 kW, providing excellent fuel efficiency and low emissions.
-
Smooth Hydraulic System: Features a high-performance hydraulic setup (16 MPa max pressure) using components from trusted brands like Beifang (main valve), Tianji (main pump), and SANYO (rotation and walking motors).
-
Precision Movement: Boom swing function allows for increased flexibility in narrow work areas, with a platform rotary speed of 9–11 r/min.
-
Excellent Stability: With a low ground pressure of just 18.9 N/m² and max gradeability of 30°, this machine handles uneven terrain with ease.
-
User-Friendly Design: Compact dimensions (only 925mm wide) allow for easy transport and operation in tight urban or residential areas.
Specifications:
-
Operating Weight: 1,180 kg
-
Bucket Capacity: 0.028 m³
-
Max. Traction Force: 9.2 kN
-
Max. Walking Speed: 2.1 km/h
-
Boom Length: 1,490 mm
-
Arm Length: 800 mm
-
Ground Clearance: 240 mm
-
Overall Dimensions (L × W × H): 2770 × 925 × 1550/2100 mm (Chair/Roof)
Working Range:
-
Max. Digging Height: 2,650 mm
-
Max. Digging Depth: 1,650 mm
-
Max. Dumping Height: 1,750 mm
-
Max. Digging Radius: 2,950 mm
-
Min. Radius of Gyration: 1,150 mm
-
Tail Swing Radius: 680 mm
Whether you’re handling site prep, trenching, or light demolition, the SD13D is your go-to mini excavator for reliable, precise, and efficient work.
Related products
-
Crawler excavator

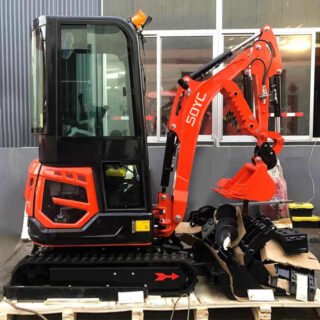

SDYC 1.8 Ton Mini Crawler Excavator
