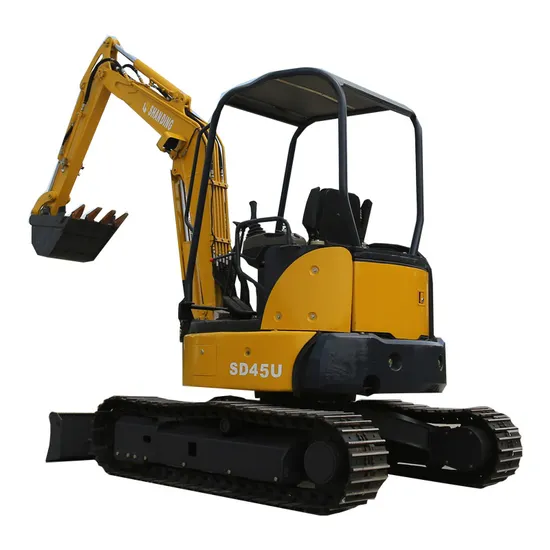

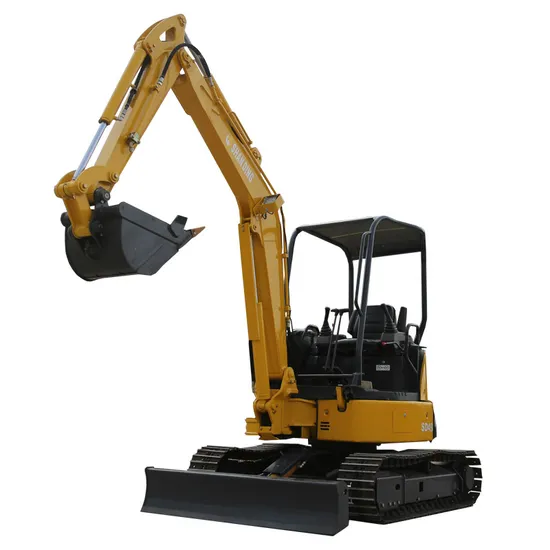

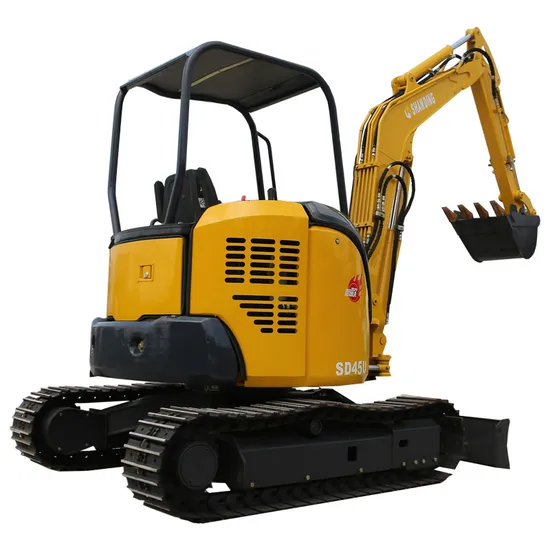

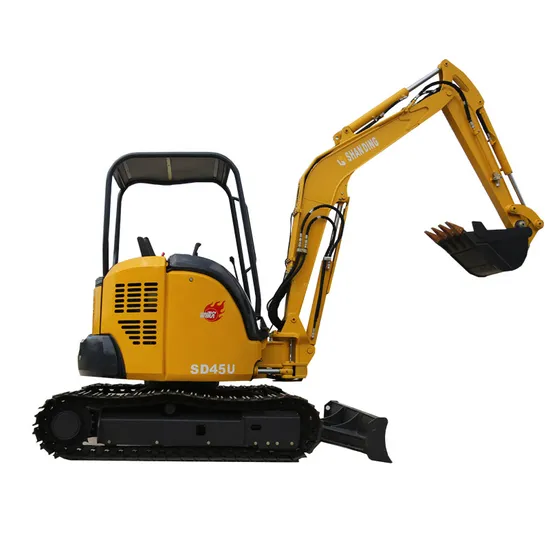

SD45U Mini Excavator – 4.3 Ton
Original price was: $28,500.00.$16,900.00Current price is: $16,900.00.
PARAMETER
| Manufacturer | SHANDONG DAVOO MACHINERY CO.,LTD |
| Brand | SHANDING |
| Model | SD45U |
| Operating mode | Hydraulic lever |
| Operating weight | 4300kg |
| Bucket capacity | 0.11cbm |
| Bucket width | 600 mm(Any size can be customized) |
| Engine | Yanmar 3TNV88 , 19.6kw/2200r/min |
| Pump | NACHI (JAPAN) |
| Valve | NABTESCO (JAPAN) |
| Walking motor | NACHI (JAPAN) |
| Rotary motor | NACHI (JAPAN) |
| Cylinder | Three cylinder, Water cooling |
| Walking speed | 2.8km/h/4.8km/h |
| Track type | Rubber Track |
| Closed cab | NO |
| Climb ability | 35º |
| Bucket digging force | 20.55kn |
| Arm digging force | 17kn |
| Physical Size | |
| Total (length*width*height) | 4825x1740x2520 mm |
| Track length*width | 2105mm*300mm |
| Dozer blade size | 1740*355 mm |
| Chassis width | 1160 mm |
| Working Range | |
| Max.digging depth | 3410 mm |
| Max.digging height | 5000 mm |
| Max.digging radius | 5300 mm |
SD45U Mini Excavator – 4.3 Ton
Powerful. Precise. Reliable.
From Shandong Davoo Machinery Co., Ltd, the Shanding SD45U mini excavator delivers outstanding performance in compact spaces—perfect for urban construction, landscaping, and utility work.
Key Features:
-
Operating Weight: 4300 kg
-
Engine: Yanmar 3TNV88 (Japan) — 19.6 kW at 2200 rpm, 3-cylinder, water-cooled
-
Hydraulic System:
-
Pump: NACHI (Japan)
-
Valve: NABTESCO (Japan)
-
Walking & Rotary Motors: NACHI (Japan)
-
Performance & Capabilities:
-
Bucket Capacity: 0.11 m³ (custom sizes available)
-
Bucket Width: 600 mm
-
Bucket Digging Force: 20.55 kN
-
Arm Digging Force: 17 kN
-
Climb Ability: Up to 35º
-
Walking Speed: 2.8 km/h (low) / 4.8 km/h (high)
-
Track Type: Durable rubber tracks
Compact Design – Impressive Reach:
-
Max. Digging Depth: 3410 mm
-
Max. Digging Height: 5000 mm
-
Max. Digging Radius: 5300 mm
-
Operating Mode: Smooth hydraulic lever control
-
Closed Cab: No – open-air design for easy visibility and quick access
Dimensions:
-
Overall Size (L×W×H): 4825 × 1740 × 2520 mm
-
Track Dimensions: 2105 × 300 mm
-
Chassis Width: 1160 mm
-
Dozer Blade Size: 1740 × 355 mm
Why Choose the SD45U?
✔ Japanese hydraulic components for high precision and durability
✔ Compact yet powerful for efficient operation in tight environments
✔ Customizable bucket options for different job requirements
✔ Easy to maintain with accessible components
Whether you’re working on tight job sites or need a machine with consistent power and versatility, the SD45U Mini Excavator is built to deliver.
