1.6 Ton SD13D Mini Excavator
Price range: $2,000.00 through $2,500.00
PARAMETER
| overall length | 2880mm |
| Maximum width | 930mm |
| Overall height | 2190mm |
| Engine type | koop |
| Rated power | 7.6kw |
| Working pressure | 16MPa |
| Maximum tilt force of the bucket | 7 KN |
| Length * width * height | 2700*925*1550mm |
| Platform width | 920mm |
| Tail radius | 6800mm |
| Track length | 1210mm |
| Platform clearance | 420mm |

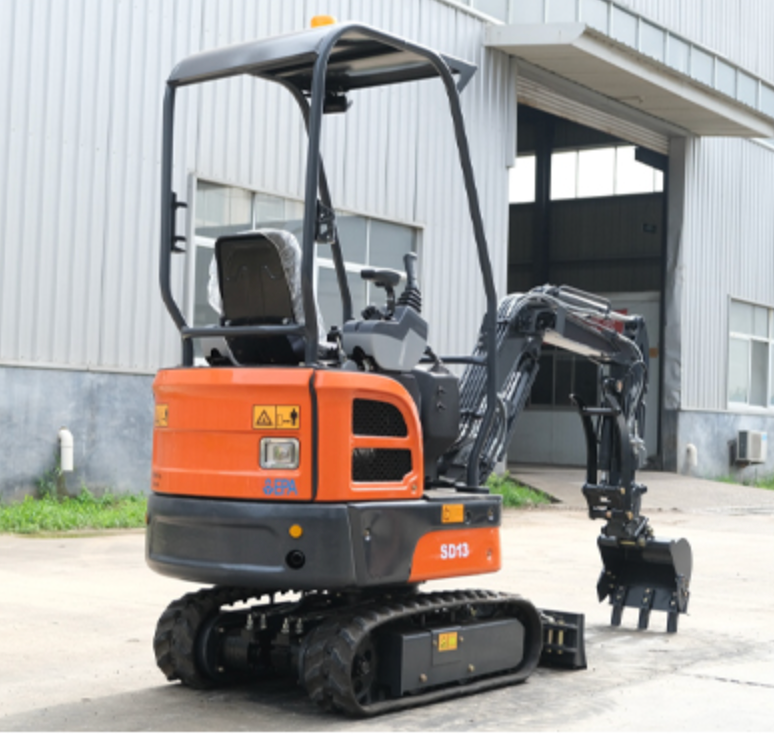

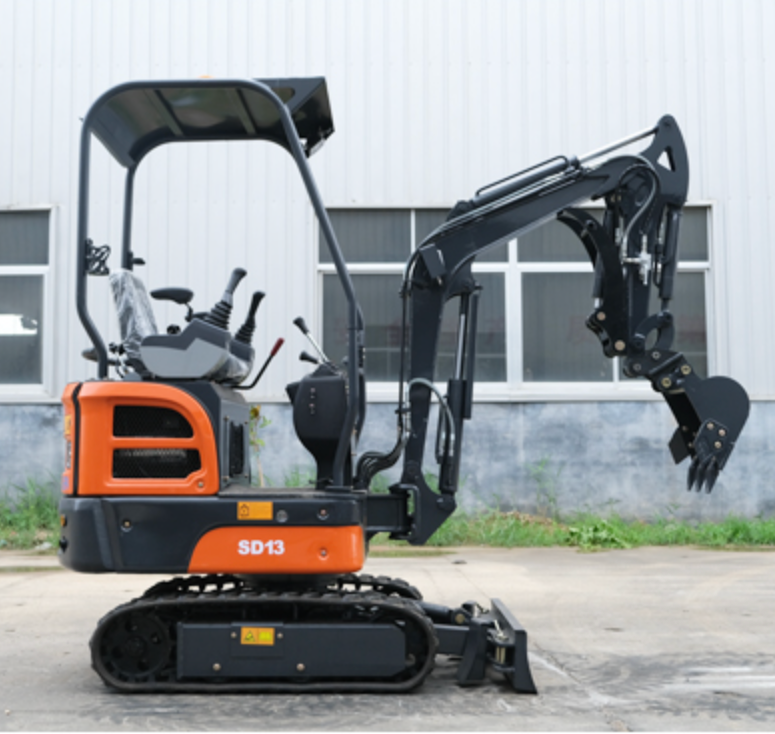

ShanDing SD13D Mini Excavator
Compact, efficient, and built for precision — the ShanDing SD13D mini excavator is the perfect solution for tight-space construction tasks. With its compact design and powerful digging capabilities, the SD13D is ideal for use in vegetable greenhouses, orchards, nurseries, and other confined working environments.
Whether you’re leveling farmland, digging irrigation trenches, or performing small-scale site prep, the SD13D delivers dependable performance with minimal ground disturbance. Its user-friendly controls, fuel-efficient engine, and durable build make it a smart choice for farmers, landscapers, and contractors alike.
Designed for maneuverability and ease of operation, the SD13D offers excellent stability and reach for a machine of its size — maximizing productivity while minimizing operating costs.
| Fuel Type | Gas, Diesel |
|---|
Related products
-
Crawler excavator
2 Ton SD18U Mini Excavator
Sale!Original price was: $7,000.00.$4,500.00Current price is: $4,500.00.
Add to cartPARAMETER
Totallength 3050mm Total width 1100mm Total height 2200mm arm length 920mm boom length 1650mm Track length 1420mm track width 230mm Platform width 950mm Platform ground clearance 440mm Maximum excavation height 3350mm Maximum Digging Depth 2042mm Maximum digging radius 3600mm Maximum dumping height 2250mm Tail turning radius 790mm Maximum sinking depth of bulldozer 195mm Maximum lifting height of bulldozer 200mm rated power 14.7kW Big arm side swing optional -
Crawler excavator
SD25B Excavator (Optional Cab)
Sale!Original price was: $11,800.00.$7,790.00Current price is: $7,790.00.
Add to cartPARAMETER
Physical Size Total length 4150mm Total width 1350mm Total heigth 2500mm Track shoe length 1621mm Track shoe width 250mm Bucket capacity 0.1m³ Bucket width 540mm Overall weight 2360kg Performance Parameters Engine brand CHANGCHAI390 Engine specification Diesel-Three cylinder Rated power 22kw Rotation speed 13rpm Ground pressure 35kpa Max.digging force 15kn Max.climb ability 30° Max.walking speed 2.2km/h Working Range Max.digging depth 2500mm Max.digging heigth 3750mm Max.dumping height 2488mm Min.radius of gyration 1800mm -
Crawler excavator
SD13D 1.0 Ton Mini Excavator
Sale!Original price was: $3,200.00.$1,650.00Current price is: $1,650.00.
Add to cartPARAMETER
Machine parameters
Model SD13D Operating Weight 1180Kg Bucket Capacity 0.028m³ Rated Power 14 kw/11.2 kw Max.Hydraulic System Pressure 16mpa Max. Grade ability 30° Max. Ground Pressure 18.9N/m² Max Walking Speed 2.1Km/h Max. Traction 9.2KN Platform Rotary Speed 9-11r/min Boom swing function yes Dimensions
Overall Length 2770mm Overall Width 925mm Overall Height 1550mm/2100(Chair/Roof) Arm Length 800mm Boom Length 1490mm Track Length 1210mm Track Width 180mm Ground Clearance 240mm Platform Width 920mm Platform Ground Clearance 420mm Bucket Width 370mm Working range
Max. Digging Height 2650mm Max Digging Depth 1650mm Max. Digging Radius 2950mm Max Dumping Height 1750mm Min. Radius of Gyration 1150mm Radius of Tail Gyration 680mm Machine configure
Engine Model Yanmar 3TNV70 / 3TNV74 Main valve Beifang Main Pump Tianji Rotation Motor
SANYO
Walking Motor
SANYO
-
Crawler excavator
SD20U Mini Excavator ( Cab optional )
Sale!Original price was: $13,300.00.$7,300.00Current price is: $7,300.00.
Add to cartPARAMETER:
Brand SHANDING overall weight 1960Kg bucket capacity 0.06m³ engine power 14.7KW speed 2200r/min Pressure of hydraulic system 18MPa Climbing slope 30° Grounding pressure 32kpa walking speed 2.5-4.5Km/h Max. traction 15KN Platform turning speed 13rmp Maximum Digging Force 15KN engine model Perkins can choose Yanmar Euro stage V pump Futai Three pump system Rotary motor EATON Walking motor EATON Max.digging height 3400mm Max. dump clearance 2160mm Max.digging depth 2050mm Max.digging radius 3600mm Max. horizontal mining distance 2950mm Rear radius of rotation 1760mm Max. shovel depth 220mm Max. elevation of bulldozer 250mm boom length 1860mm arm length 940mm bucket size 480mm Machine configure Overall size overall length 3400mm overall width 1000-1300mm overall height 2200mm Turning radius of platform 1760mm track length 1650mm track width 250mm ground clearance 245mm Height of moving arm end 1450mm Platform Width 980mm engine backcover height 650mm Platform ground clearance 490mm
