SD25B Excavator (Optional Cab)
Original price was: $11,800.00.$7,790.00Current price is: $7,790.00.
PARAMETER
| Physical Size | ||||
| Total length 4150mm | ||||
| Total width 1350mm | ||||
| Total heigth 2500mm | ||||
| Track shoe length 1621mm | ||||
| Track shoe width 250mm | ||||
| Bucket capacity 0.1m³ | ||||
| Bucket width 540mm | ||||
| Overall weight 2360kg | ||||
| Performance Parameters | ||||
| Engine brand CHANGCHAI390 | ||||
| Engine specification Diesel-Three cylinder | ||||
| Rated power 22kw | ||||
| Rotation speed 13rpm | ||||
| Ground pressure 35kpa | ||||
| Max.digging force 15kn | ||||
| Max.climb ability 30° | ||||
| Max.walking speed 2.2km/h | ||||
| Working Range | ||||
| Max.digging depth 2500mm | ||||
| Max.digging heigth 3750mm | ||||
| Max.dumping height 2488mm | ||||
| Min.radius of gyration 1800mm |

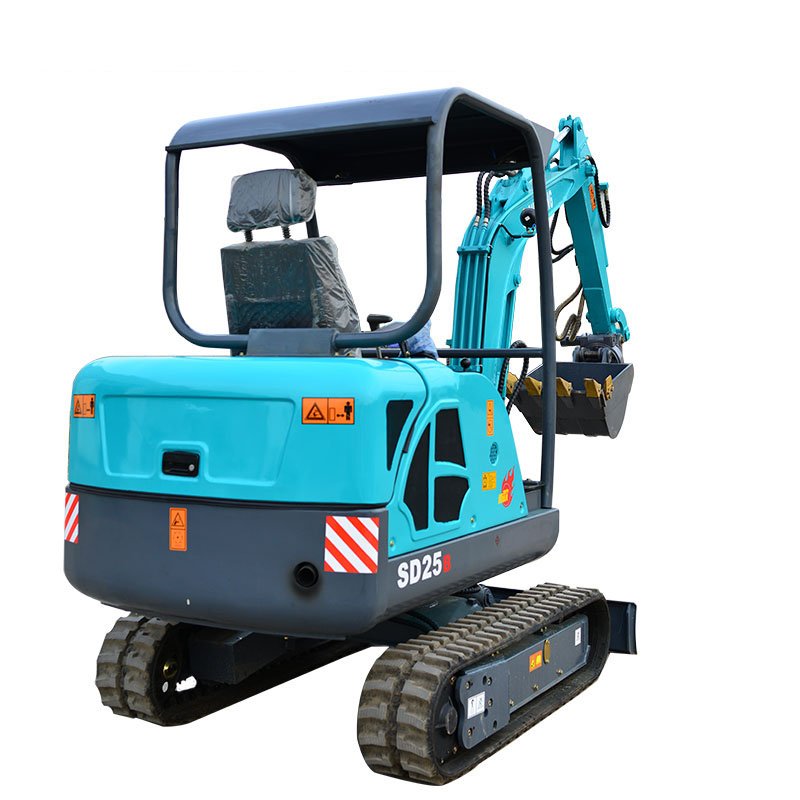

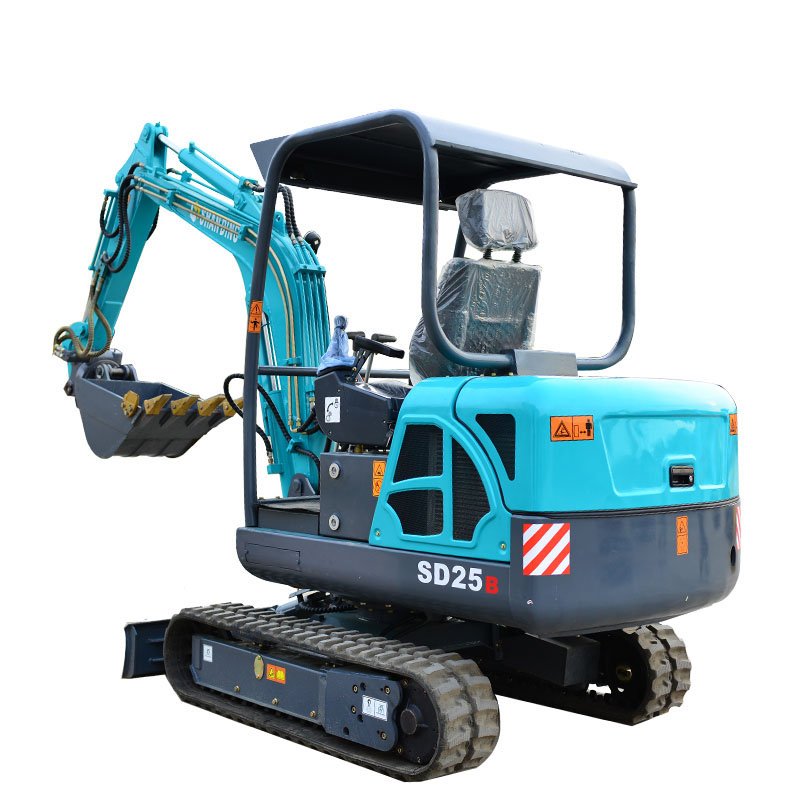

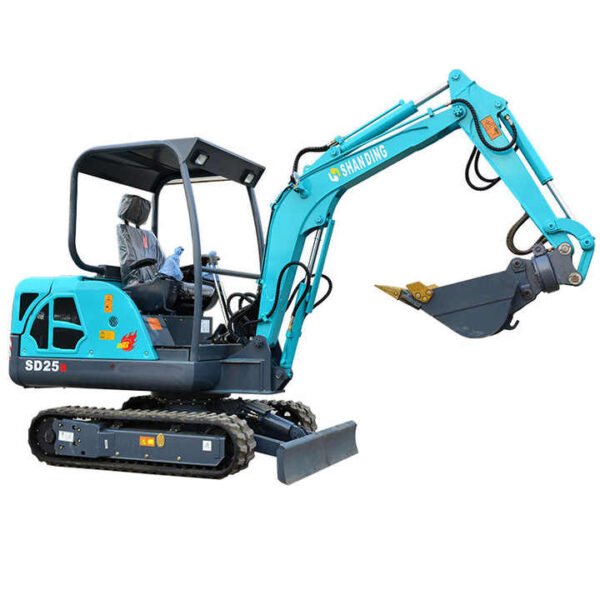

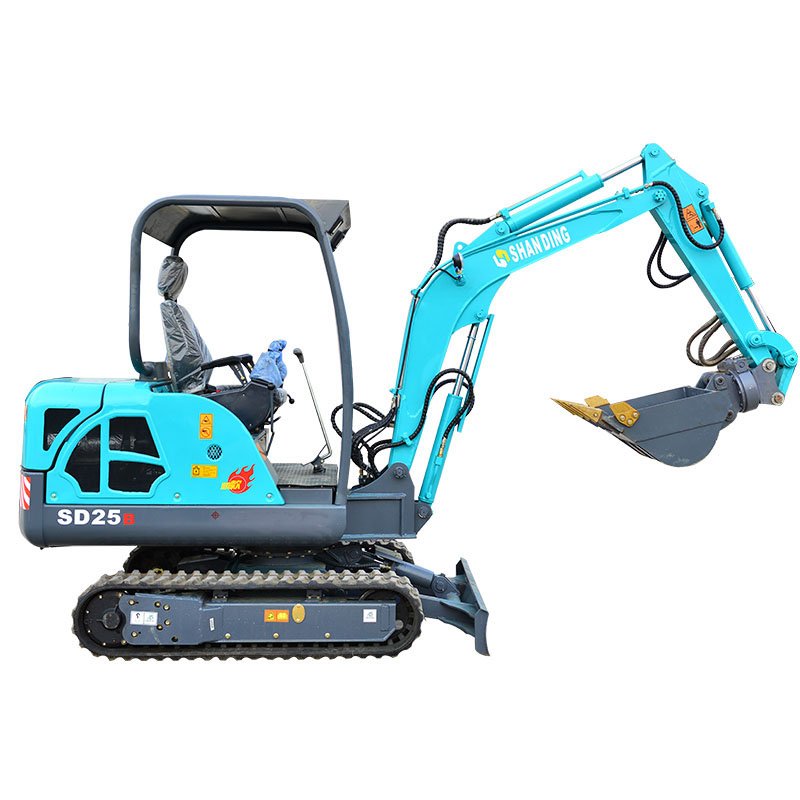

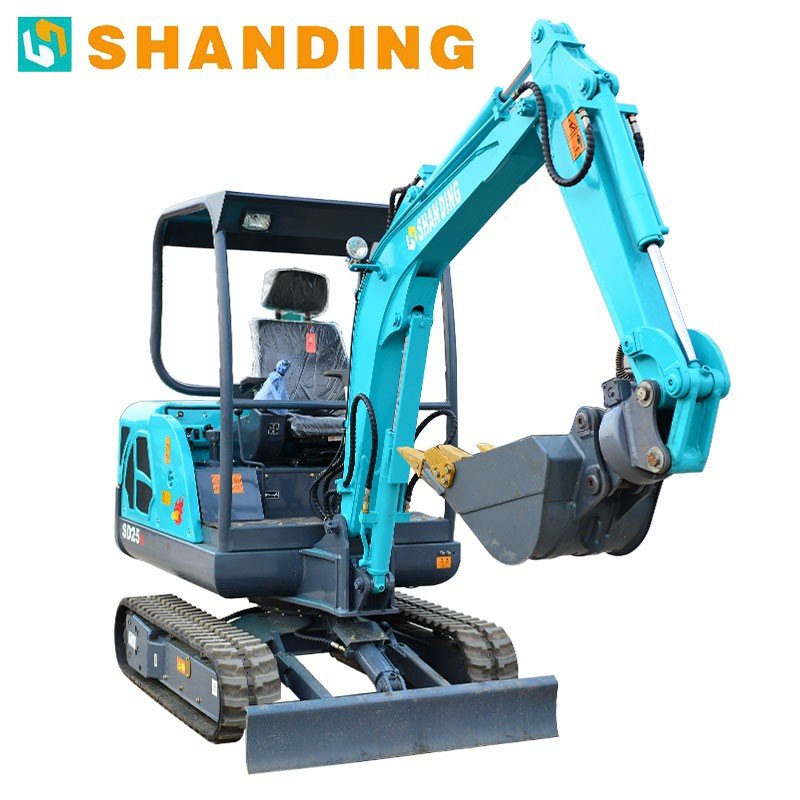

ShanDing SD25B Excavator (Optional Cab)
Powerful. Compact. Reliable.
The ShanDing SD25B is a robust and versatile 2.3-ton mini excavator designed for performance in tight job sites without compromising power. Engineered with precision and powered by a dependable CHANCHAI 390 engine (with an optional Yanmar Euro Stage V upgrade), this model combines fuel efficiency with strong digging capabilities—ideal for construction, landscaping, utility, and agricultural projects.
Key Features:
-
Engine Power: 20KW @ 2200r/min
-
Bucket Capacity: 0.1 m³
-
Operating Weight: 2280 kg
-
Hydraulic System: Futai three-pump system with 18 MPa pressure
-
Drive & Swing: EATON rotary and walking motors for smooth operation
-
Maximum Digging Force: 15KN
-
Climbing Ability: Up to 30° slopes
-

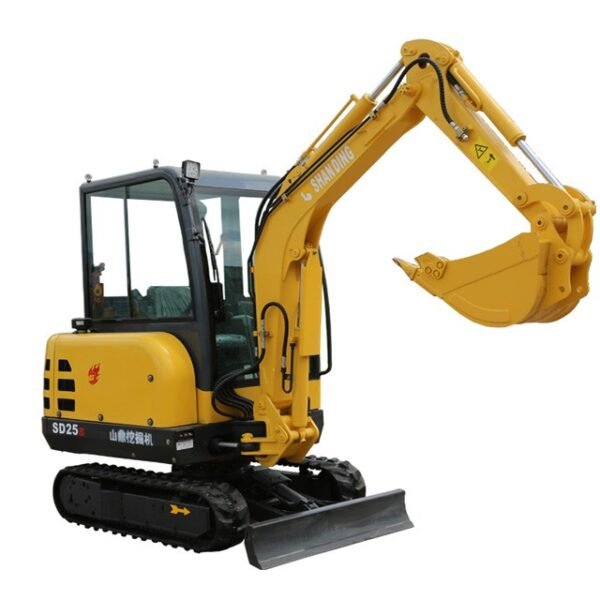

Optional Cab: Enhanced operator comfort in all weather conditions
Performance & Range:
-
Max Digging Depth: 2500 mm
-
Max Digging Height: 3750 mm
-
Max Dumping Height: 2488 mm
-
Max Digging Radius: 4250 mm
-
Walking Speed: 2.7 km/h
-
Platform Turning Speed: 13 rpm
-
Ground Clearance: 245 mm
Dimensions:
-
Overall Size (L×W×H): 4150 × 1350 × 2300 mm
-
Platform Turning Radius: 1800 mm
-
Track Width: 250 mm
-
Boom / Arm Length: 2000 mm / 1100 mm
-
Bucket Width: 540 mm
Why Choose the SD25B?
-
Compact size for easy transport and maneuverability
-
Durable structure with high-quality components
-
Optional cab for increased operator protection and comfort
-
Low maintenance and operational cost
-
Ideal for urban worksites and small-to-medium excavation jobs
