Name: SD17-9 1.5 Shanding Ton Mini Excavator
SKU: 826
Availability: InStock

SD17-9 1.5 Shanding Ton Mini Excavator

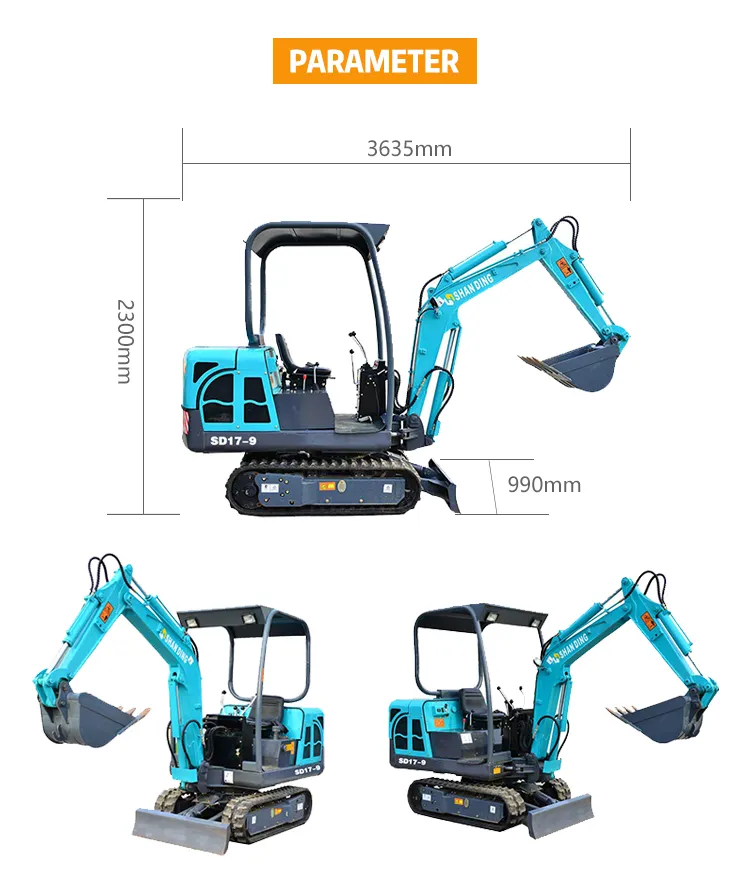

PARAMETER

Overall size
Min Radius of Gyration	1600mm
Min Ground Clearance	305mm
Platform Width	980mm
Engine hood height	1170mm
Platform Height Above Ground	480mm
Bucket Width	450mm
Transport Length	3500mm
Machine parameters
Weight	1580Kg
Bucket Capacity	0.06m³
Rated Power	13.6KW
Rated Rotation Speed	2200r/min
Max Hydraulic Pressure	16MPa
Max. Grade	30°
Ground Pressure	27.5N/m²
Max. Walking Speed	2.9Km/h
Max. Traction	11.5KN
Max Platform Rotation Speed	10rpm
Max Bucket Digging Force	10.5KN
Working range
Max. Digging Height	3300mm
Max. Dumping Height	2080mm
Max. Digging Depth	1950mm
Max Digging Radius	3600mm
Digging Radius of Max. Digging Height	2410mm
Radius of Tail Gyration	1180mm
Max. Sinking Depth of Bulldozer	200mm
Max. Lifting Height of Bulldozer	205mm
Boom Length	1650mm
Arm Length	900mm
Bucket Width	440mm
Machine configure
Model No.	SD17-9
Engine Model	LAIDONG380

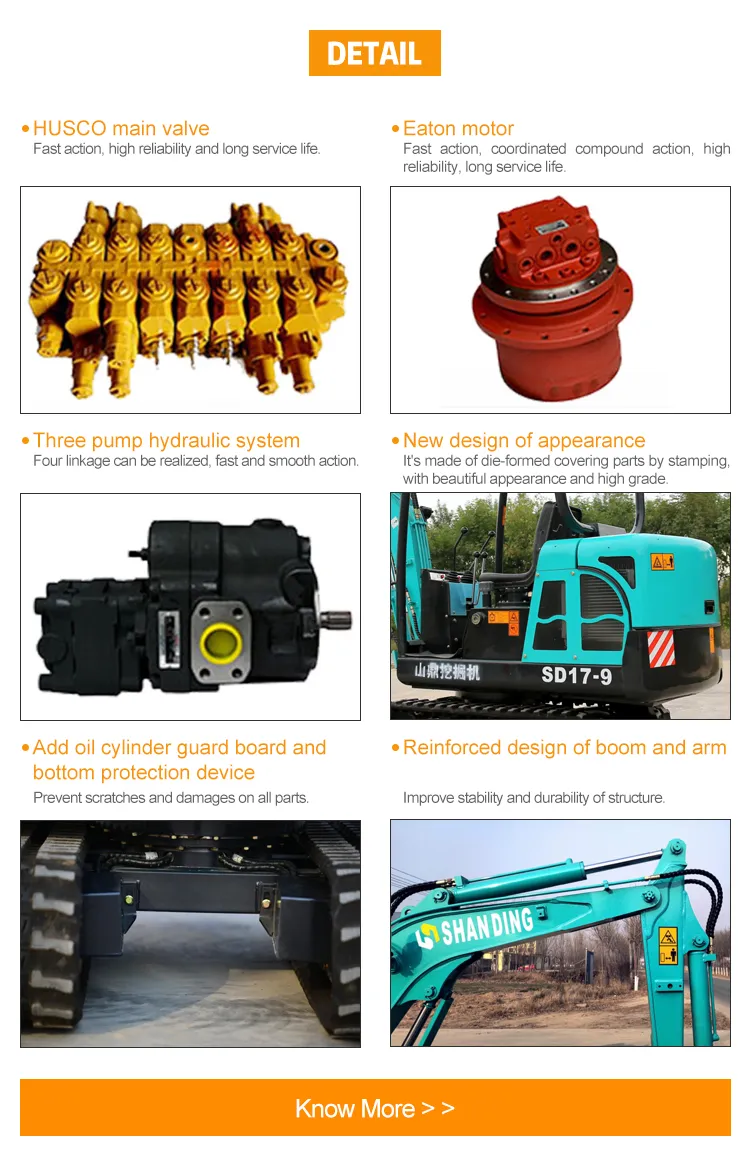

Main Pump	Three Pump System
Rotation/Walking Motor	Imported Motor

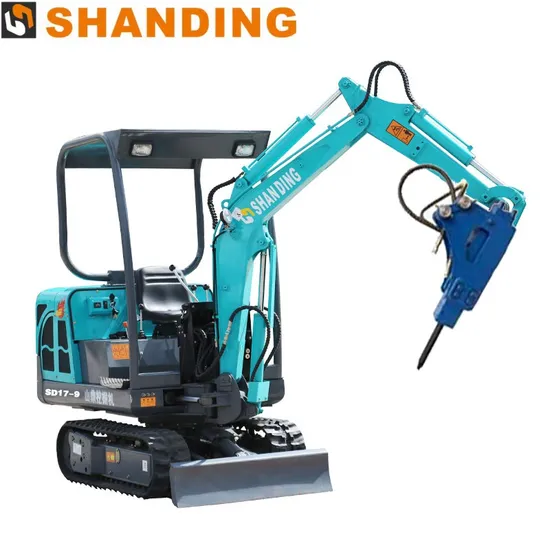

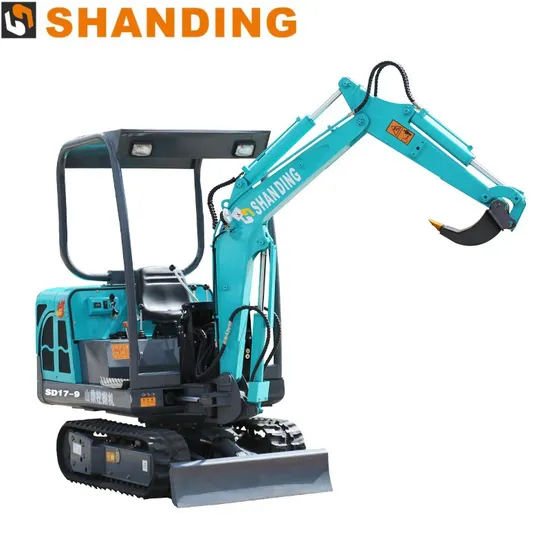

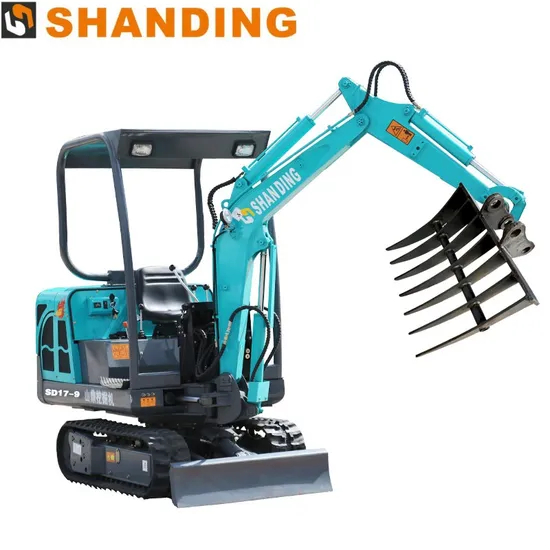

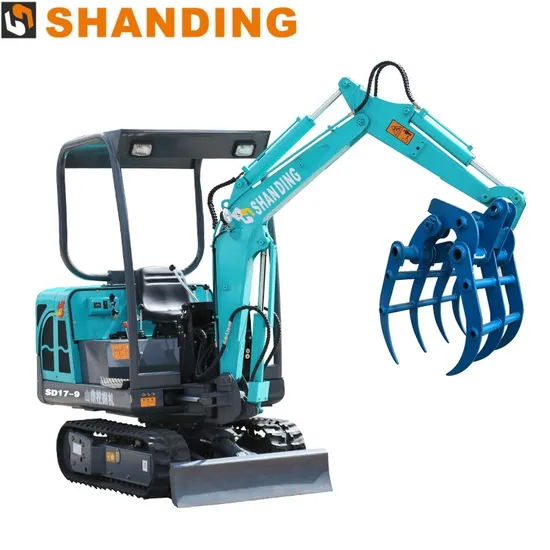

Shanding SD17-9 1.5 Ton Mini Excavator

Compact Power. Maximum Performance.

The Shanding SD17-9 is a high-performance 1.5-ton mini excavator designed for tight spaces and tough jobs. Combining compact size with robust capabilities, this machine is ideal for landscaping, utility work, construction, and agricultural projects.

Key Features:

✅ Compact & Maneuverable:
With a minimum radius of gyration of just 1600mm and ground clearance of 305mm, the SD17-9 is built to navigate confined job sites with ease while maintaining strong stability and digging power.

✅ Efficient LAIDONG380 Engine:
Powered by a 13.6KW engine running at 2200 rpm, it offers reliable performance and fuel efficiency to keep your operations running smoothly.

✅ Heavy-Duty Hydraulic System:
Equipped with a three-pump hydraulic system and maximum pressure of 16MPa, the SD17-9 delivers a bucket digging force of 10.5KN, making it a small machine with serious muscle.

✅ Precision and Reach:

Max Digging Depth: 1950mm
Max Dumping Height: 2080mm
Max Digging Radius: 3600mm
Boom Length: 1650mm | Arm Length: 900mm

✅ Operator-Friendly Design:
With a platform height of 480mm, bucket width of 450mm, and imported walking/rotation motors, this excavator provides smooth control, reduced vibration, and easy access for routine maintenance.

Technical Specifications:

Operating Weight: 1580Kg
Bucket Capacity: 0.06m³
Ground Pressure: 27.5N/m²
Max Walking Speed: 2.9Km/h
Max Gradeability: 30°
Max Platform Rotation Speed: 10rpm
Max Traction Force: 11.5KN

Blade Specs:

Max Bulldozer Lift Height: 205mm
Max Bulldozer Sinking Depth: 200mm

Whether you’re working in urban construction sites or rural landscapes, the Shanding SD17-9 provides the perfect balance of size, strength, and versatility to get the job done efficiently.
