1 Ton SD12E Mini Excavator
Original price was: $4,000.00.$1,700.00Current price is: $1,700.00.
PARAMETER
| Engine type | koop |
| Rated power | 7.6kw |
| Working pressure | 16MPa |
| Length * width * height | 2700*925*1550mm |
| Platform width | 920mm |
| Tail radius | 6800mm |
| Track length | 1210mm |
| Platform clearance | 420mm |
| Dozer sinking/lifting height | 230mm/210mm |
| Maximum excavation height | 2650mm |
| Maximum unloading height | 1750mm |
| Maximum digging depth | 1650mm |
| Maximum excavation radius | 2950mm |
| Minimum radius of turn | 1425mm |
| Maximum climbing capacity | 30° |
| Maximum travel speed | 2.1km/h |
| Main pump flow | 25L/Min |
| Platform turning speed | 9-11rpm |
| Bucket capacity | 0.028m³ |
| Ground pressure | 18.9N/㎡ |

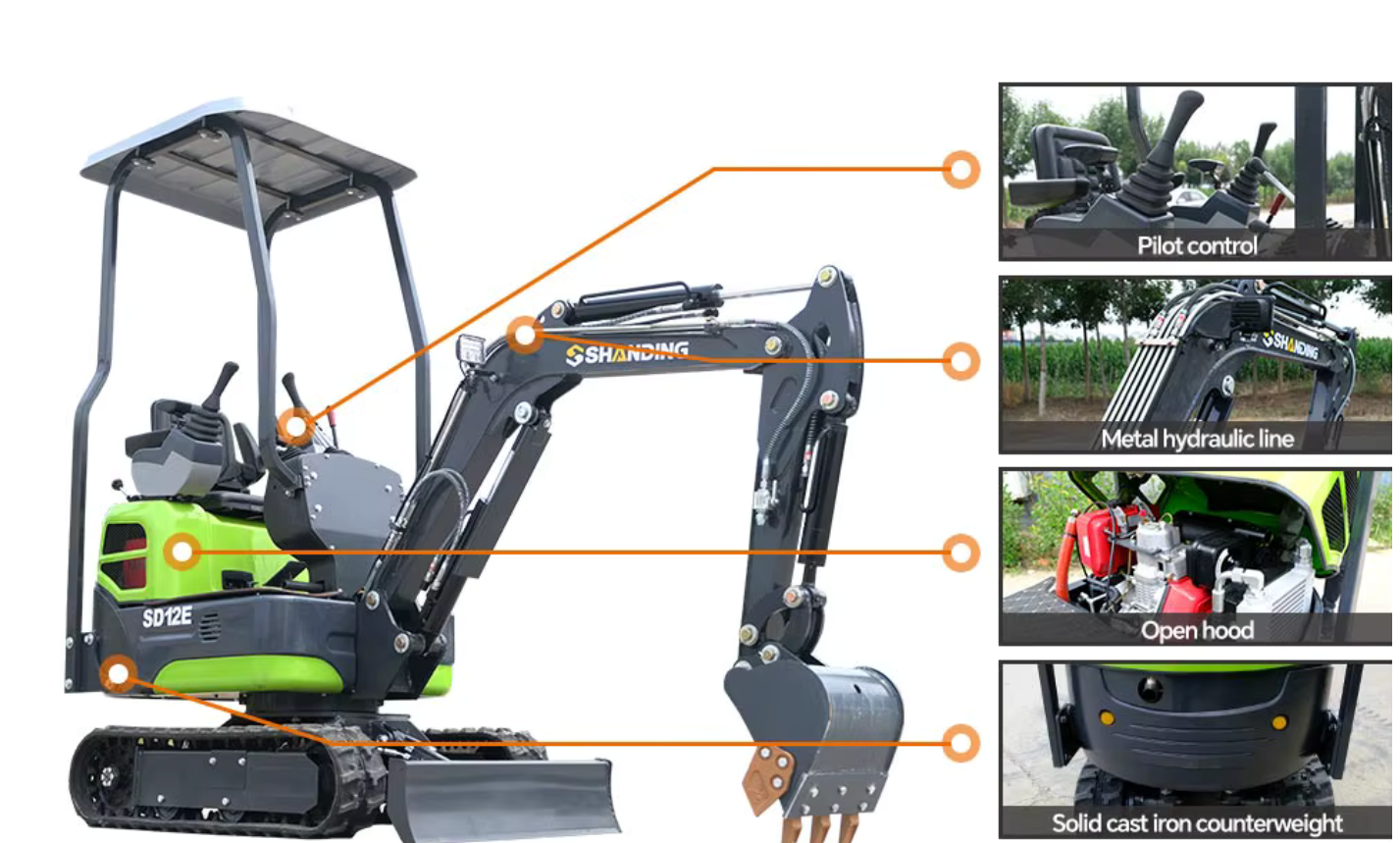

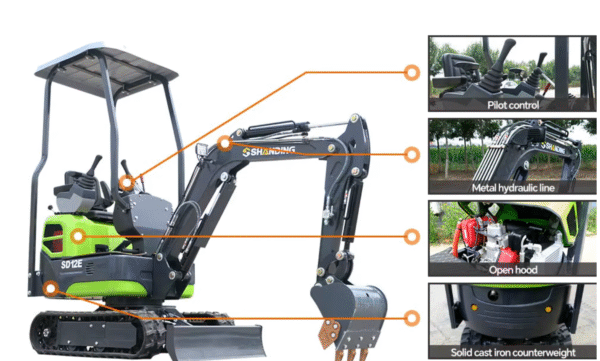

SD12E Mini Excavator – Compact Power, Built for Performance
The SD12E from Shandong Shanding Construction Machinery Co., Ltd. is a compact yet powerful mini excavator designed for versatility and efficiency in tight workspaces. With its efficient structure and easy-to-operate controls, the SD12E is ideal for landscaping, trenching, demolition, and small-scale construction projects.
Backed by a company known for modern manufacturing and global reliability, the SD12E is built using advanced technology, a strict quality control system, and high-grade materials to ensure consistent performance. It holds both CE and ISO certifications, reflecting its compliance with international quality and safety standards.
Shanding’s commitment to fast delivery and customer satisfaction is evident in every machine. The SD12E comes supported by a dedicated after-sales service team, ready to provide prompt assistance whenever needed, anywhere in the world.
Whether you’re a contractor, landowner, or equipment rental provider, the SD12E delivers professional-grade results with the durability and dependability you can trust.
