23.5 Ton Crawler Excavator
Original price was: $72,000.00.$55,000.00Current price is: $55,000.00.
Parameters:
| Manufacturer |
SHANDING GROUP MANUFACTURING Co. LTD |
| Brand | SHANDING |
| Model | SD235LC |
| Operating weight | 21000kg |
| Engine Model | Original IUSZU 6BG1(JAPAN ORIGINAL) |
| Rated Power | 128.5kw/2100r/Min |
| Output power | 47.4kw |
| Cylinder | Six cylinder, Water cooling,Direct injection |
| Pump | Imported from Korea,Variable axial piston pump |
| Valve | KYB (JAPAN) |

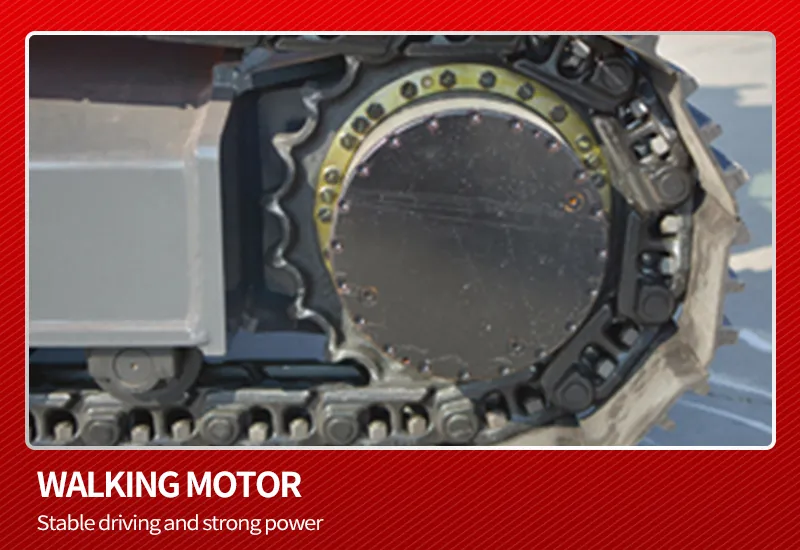

| Travel motor | TM40VD (KOREA) |
| Rotary motor | KAWASAKI (korea) |
| Max Travel speed(H/L) | 4.5-3.1km/h |
| Air Condation(A/C) | With |
| Radio | With |
| Track type | Steel Track |
| Closed cab | Yes |
| Max Swing Speed | 12.4R/Min |
| Max Bucket digging force | 136.2/144.1kn |
| Max Arm digging force | 97/102.9kn |
| Physical Size | |
| Overall Size (length*width*height) | 9510x2990x3030 mm |
| Track length*width | 4440mm*2990mm |
| Ground contact length of track | 3645mm |
| Height of Cabin | 3000mm |
| Radius of Turn at the back end | 2750mm |
| Minimum ground distance | 480 mm |

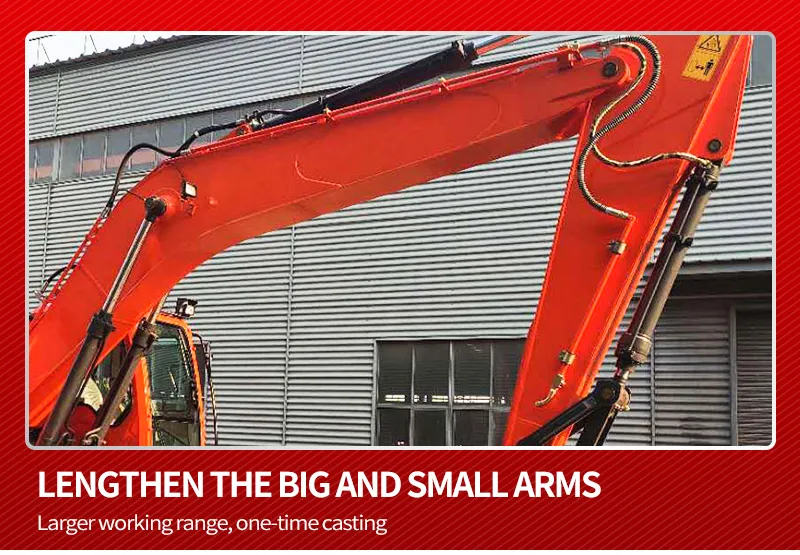

| Arm Length | 2900mm |
| Gauge of tracks | 2390mm |
| Working Range | |
| Max. Vertical Digging Depth | 9660MM |
| Max.digging depth | 6630 mm |
| Max.digging height | 9660 mm |
| Max.digging radius | 9735 mm |
| Max.dumping height | 6810mm |
| Max digging radius of stop surface | 9735mm |
| OPTIONAL ATTACHMENTS | |
| BREAKING HAMMER | optional |
| QUICK HITECT | optional |
| Rotary Rigger | optional |

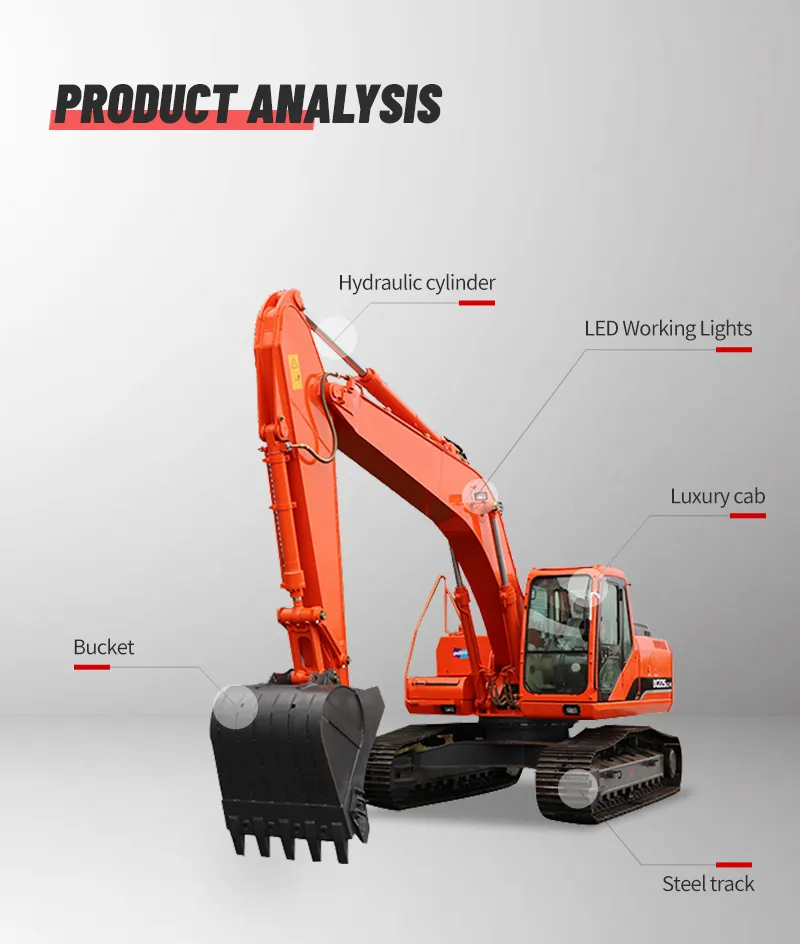

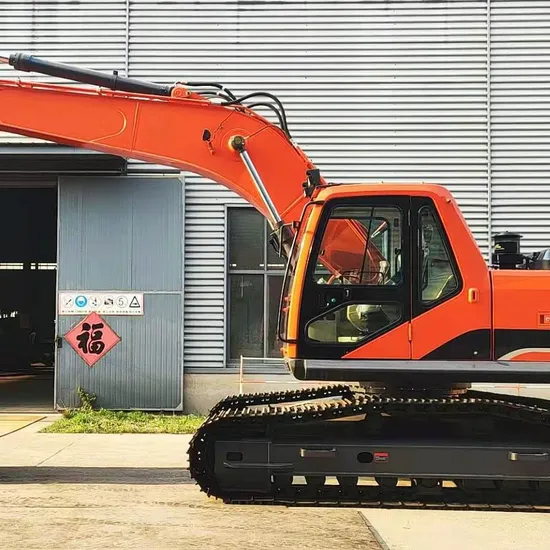

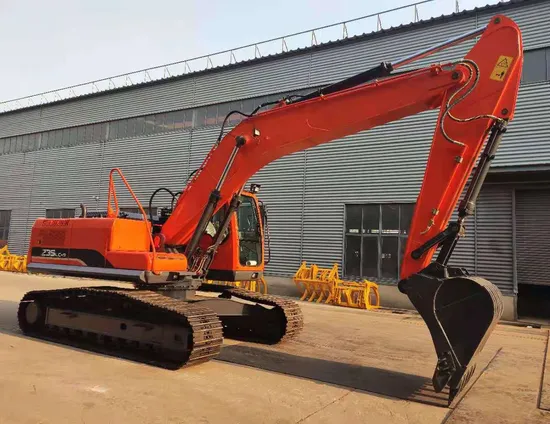

Factory 23.5 Ton Crawler Excavator – SHANDING SD235LC
Take on heavy-duty excavation tasks with confidence using the SHANDING SD235LC 23.5 Ton Crawler Excavator, engineered for peak performance in demanding work environments like marble and granite quarries, large-scale mining sites, and major contracting projects.
Equipped with the original ISUZU 6BG1 engine from Japan, this excavator delivers strong, reliable power and exceptional fuel efficiency. Built with premium components including a KAWASAKI rotary motor, KYB control valve, and Korean-imported axial piston pump, it ensures superior hydraulic performance and long-lasting durability.
Its advanced design features high digging forces, rapid swing speed, and a reinforced steel track system—making it an ideal solution for both tough terrain and precision-driven operations.
Key Features:
-
💪 Powerful Performance
-
Engine: Original ISUZU 6BG1 (Japan)
-
Rated Power: 128.5 kW @ 2100 rpm
-
Output Power: 47.4 kW
-
Cooling System: Six-cylinder, water-cooled, direct injection
-
-

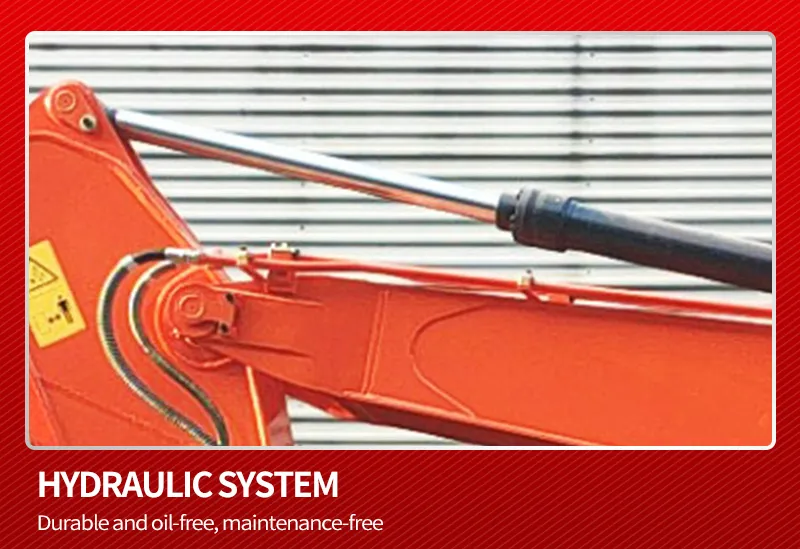

🔧 Premium Hydraulic System
-
Pump: Korean-imported variable axial piston pump
-
Valve: KYB (Japan)
-
Travel Motor: TM40VD (Korea)
-
Swing Motor: KAWASAKI (Korea)
-
-
🚜 Efficient & Operator-Friendly Design
-
Operating Weight: 23,000 kg
-
Max Travel Speed: 4.5–3.1 km/h
-
Max Swing Speed: 12.4 R/min
-
Closed Cabin with A/C & Radio
-
Durable Steel Track for stability on rough ground
-
Working Range:
-
Max Digging Depth: 6,630 mm
-
Max Digging Height: 9,660 mm
-
Max Dumping Height: 6,810 mm
-
Max Digging Radius: 9,735 mm
-
Max Vertical Digging Depth: 9,660 mm
Physical Dimensions:
-
Overall Size (L×W×H): 9510×2990×3030 mm
-
Track Size (L×W): 4440×2990 mm
-
Minimum Ground Clearance: 480 mm
-
Turning Radius (Rear): 2750 mm
-
Arm Length: 2900 mm

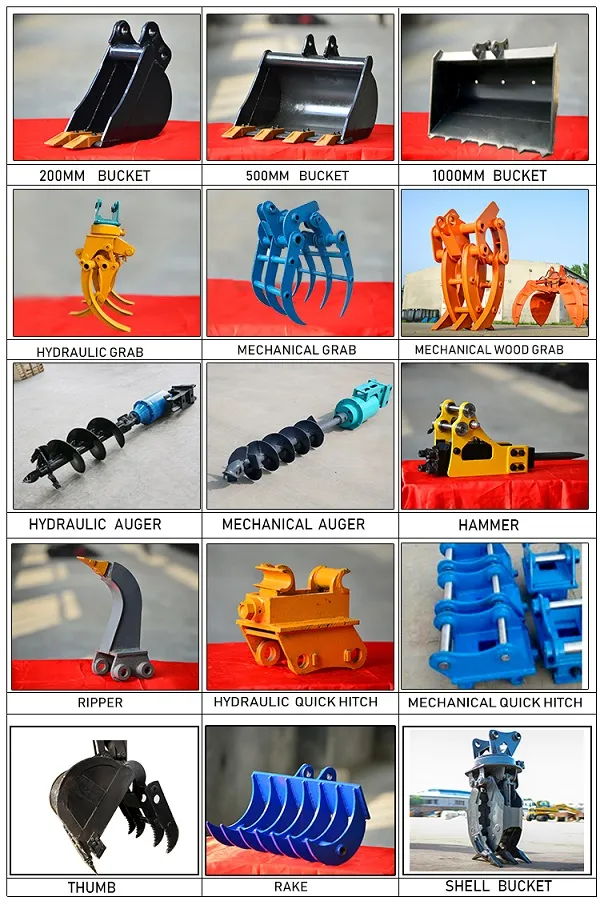

Optional Attachments:
-
🔨 Breaking Hammer
-
⚙️ Quick Hitch
-
🔁 Rotary Rigger
Whether you’re managing a construction fleet or handling private contracting jobs, the SHANDING SD235LC offers the perfect balance of power, precision, and productivity for your excavation needs.
