XG80W-9T 9 Ton Wheeled Excavator
Original price was: $29,000.00.$19,900.00Current price is: $19,900.00.
| model | XG80W-9T |
| Tail turning radius | 1740mm |
| wheel base | 2350mm |
| Bucket capacity | 0.3m₴ |
| Gradient | 30° |
| Tire type | 825-16 |
| Stick length | 1900mm |
| Digging height | 6400mm |
| Excavation radius | 6480mm |
| Radius of gyration | 2288mm |
| Main pump | Imported Shimadzu pump |
| Engine model | Yuchai YC4DK65 – T303 |
| Engine power | 48KW |
| Ground clearance | 300mm |
| Platform slewing speed | 10.2rpm |
| Hydraulic system pressure | 22mpa |
| Travel speed | 35km/h |
| Boom length | 3400mm |
| Unloading height | 4700mm |
| Excavation depth | 3350mm |

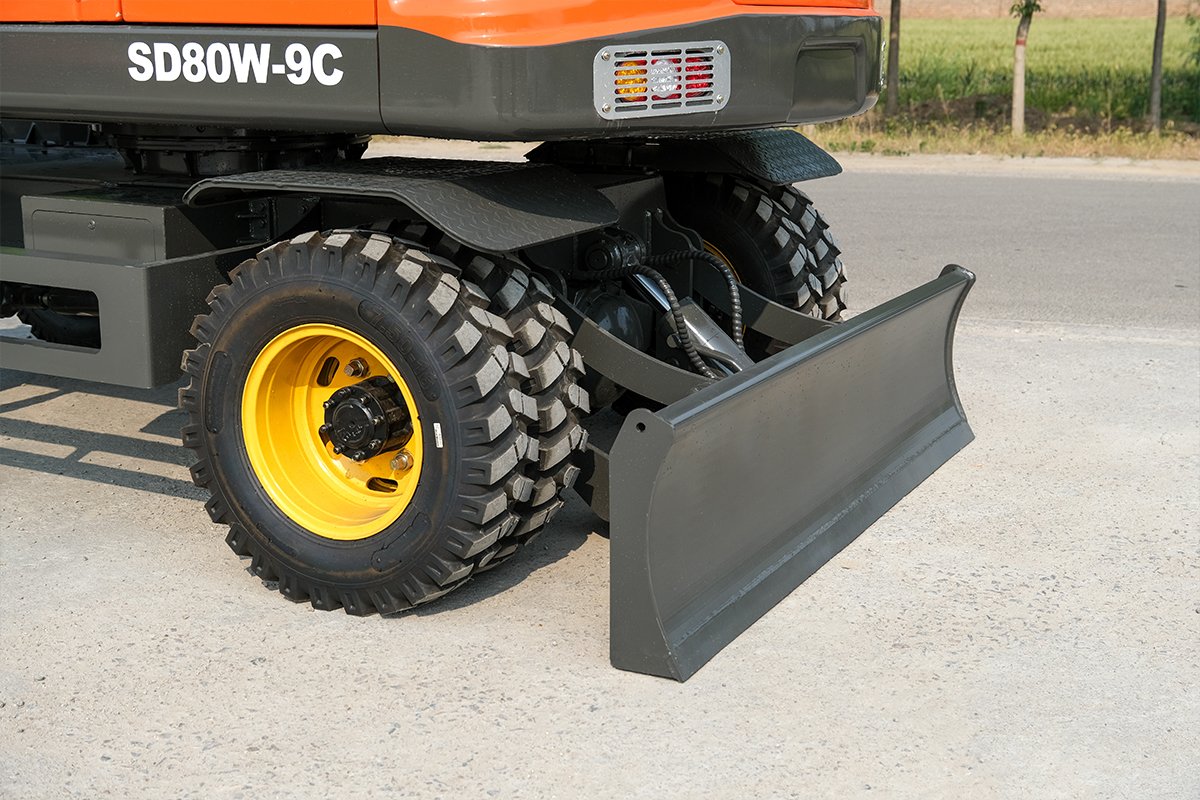

| Drop depth of bulldozer blade | 290mm |
| Main valve | Imported EATON |

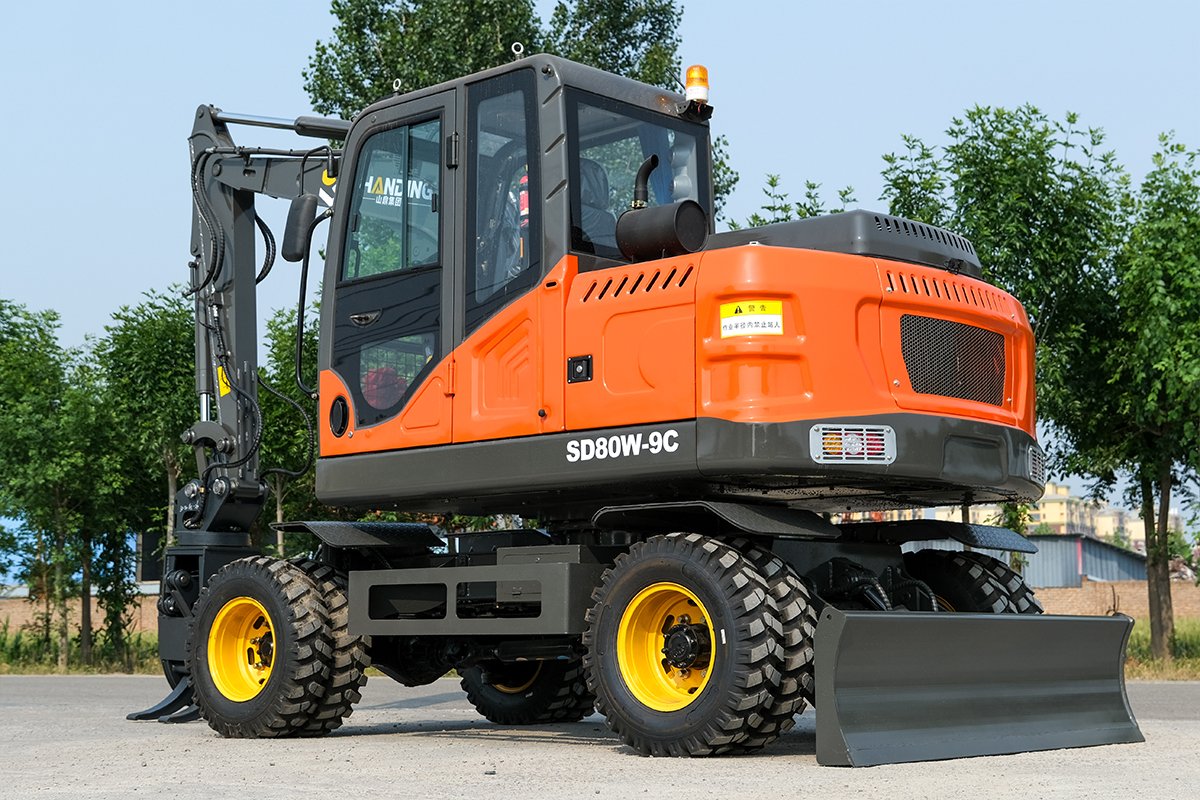

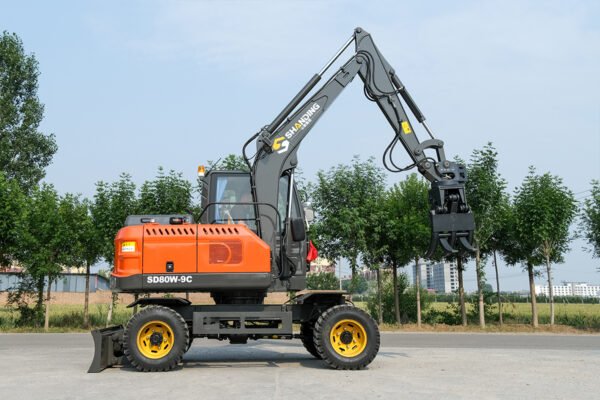

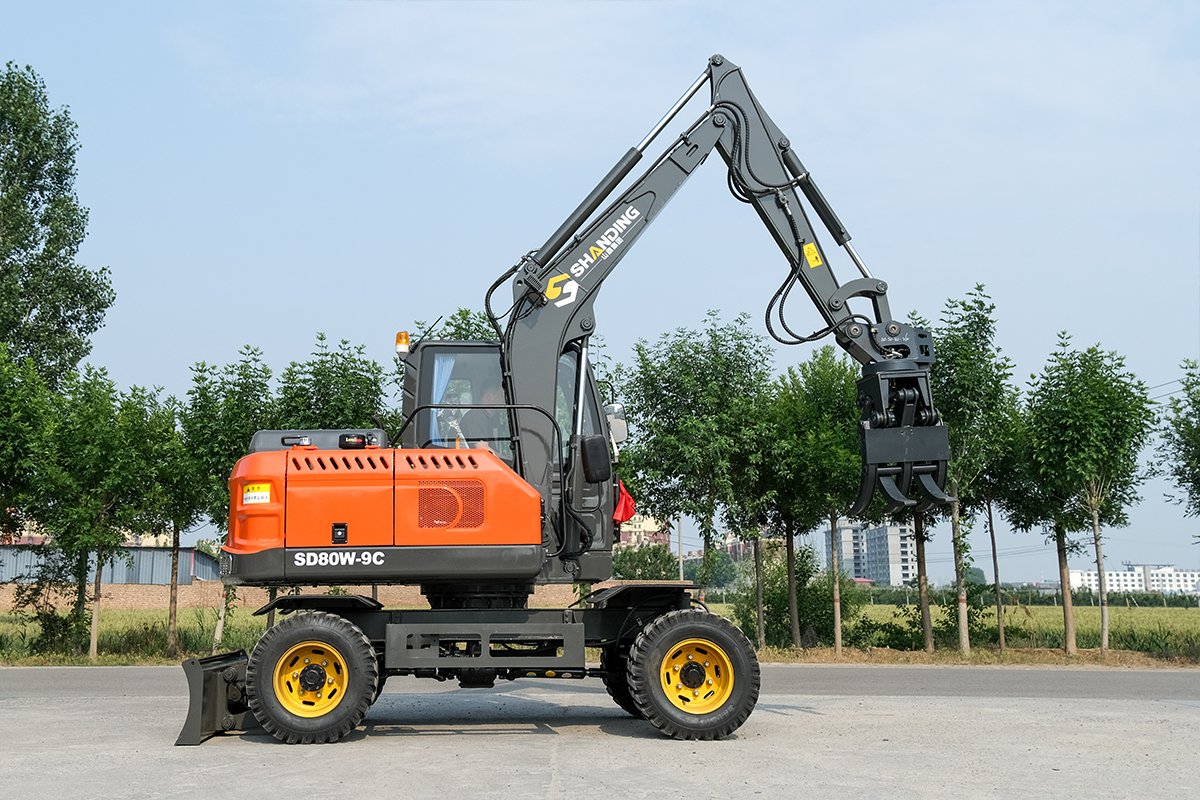

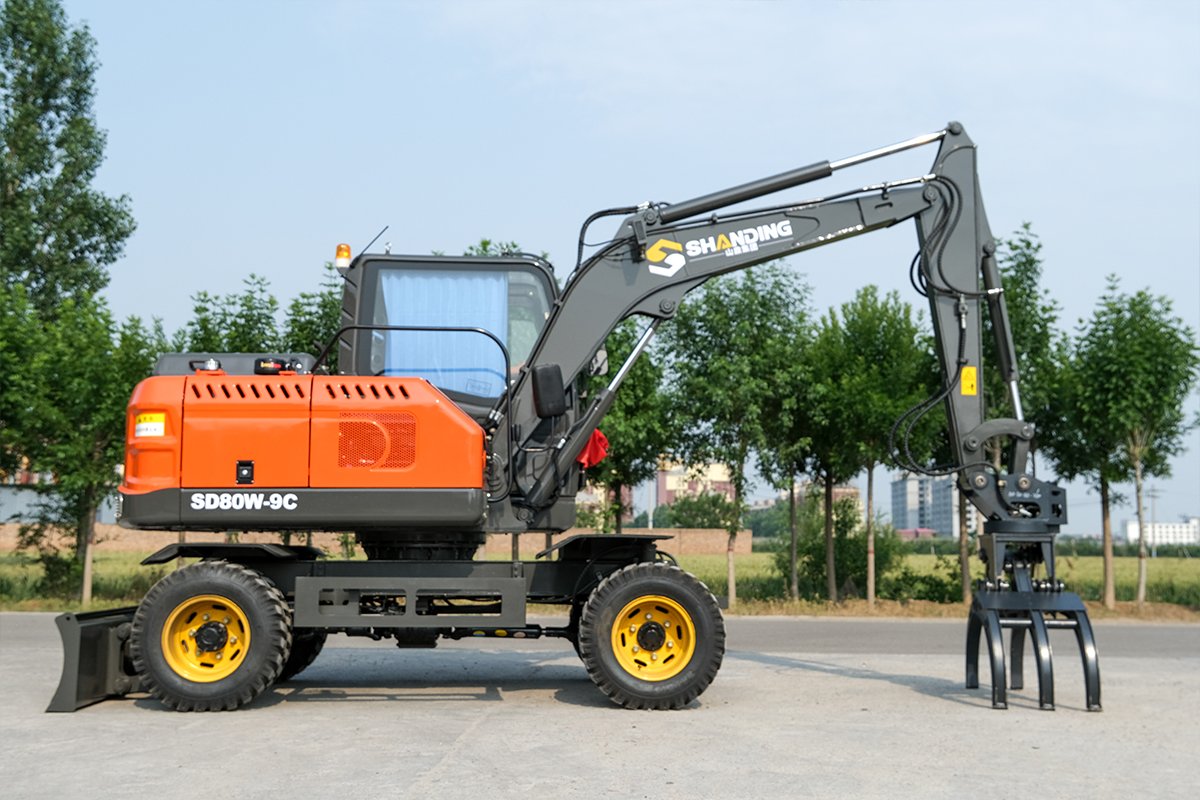

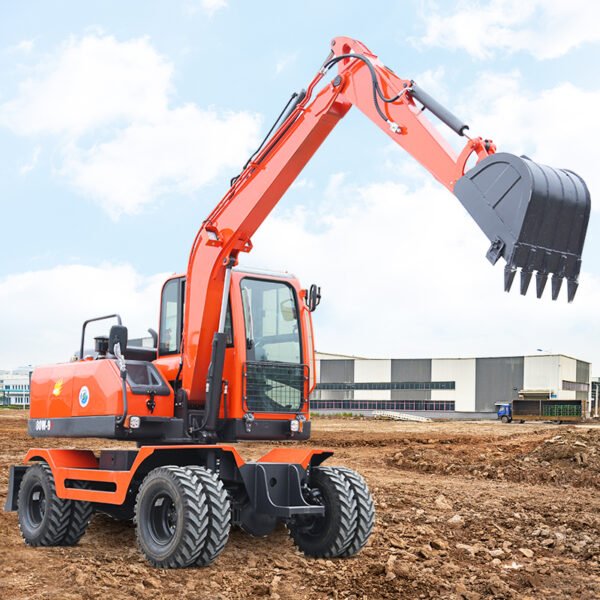

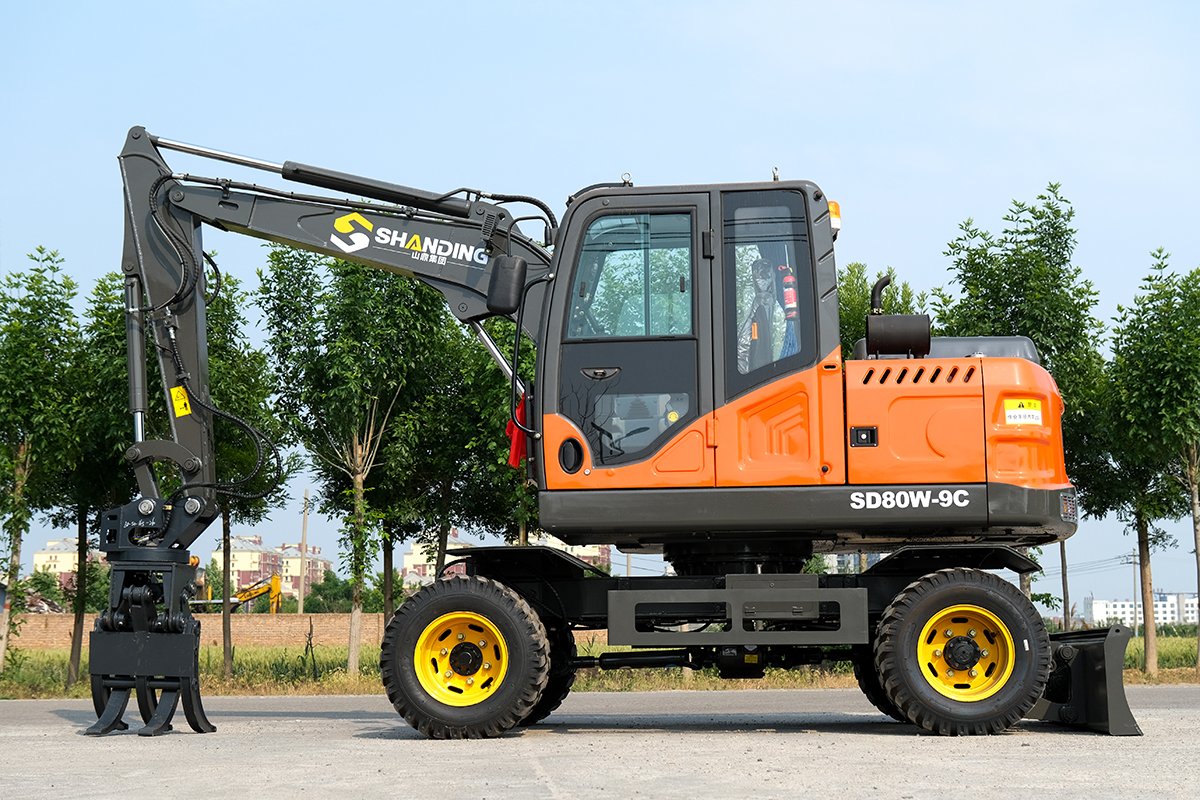

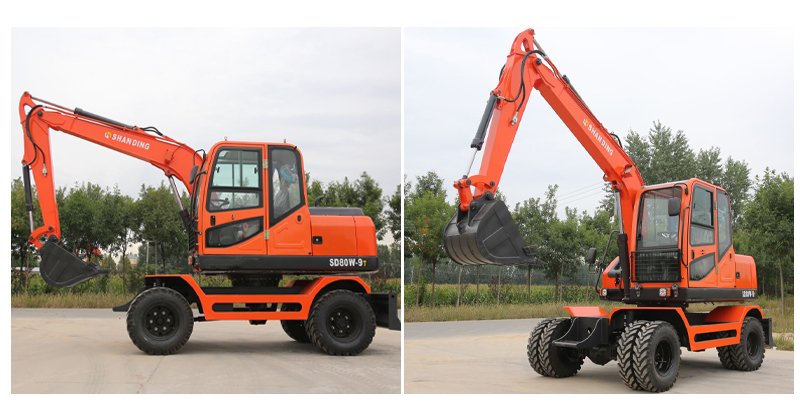

Shanding XG80W-9T 9 Ton Wheeled Excavator
Powerful. Durable. Built for Performance.
The Shanding XG80W-9T is a high-performance 9-ton wheeled excavator designed for demanding construction, utility, and excavation tasks. Engineered with a focus on strength, efficiency, and reliability, this machine is ideal for operators who require consistent power and durability on the job site.
Key Features:
-
Robust Engine Performance:
Equipped with the reliable Yuchai YC4DK65-T303 engine delivering 48KW of power, the XG80W-9T provides smooth operation, fuel efficiency, and long-lasting performance. -
Heavy-Duty Build:
Constructed with thickened steel plate welding chassis for enhanced durability and a longer service life. The reinforced, one-time welded boom and arm ensure strength and stability under pressure. -
Advanced Hydraulic System:
Fitted with an imported Shimadzu main pump and EATON main valve, the hydraulic system is responsive, efficient, and stable, delivering exceptional control and productivity. -
Precision & Versatility:
With a bucket capacity of 0.3m³, excavation depth of 3350mm, and digging height of 6400mm, the XG80W-9T is capable of tackling a wide range of tasks from trenching to site clearing. -

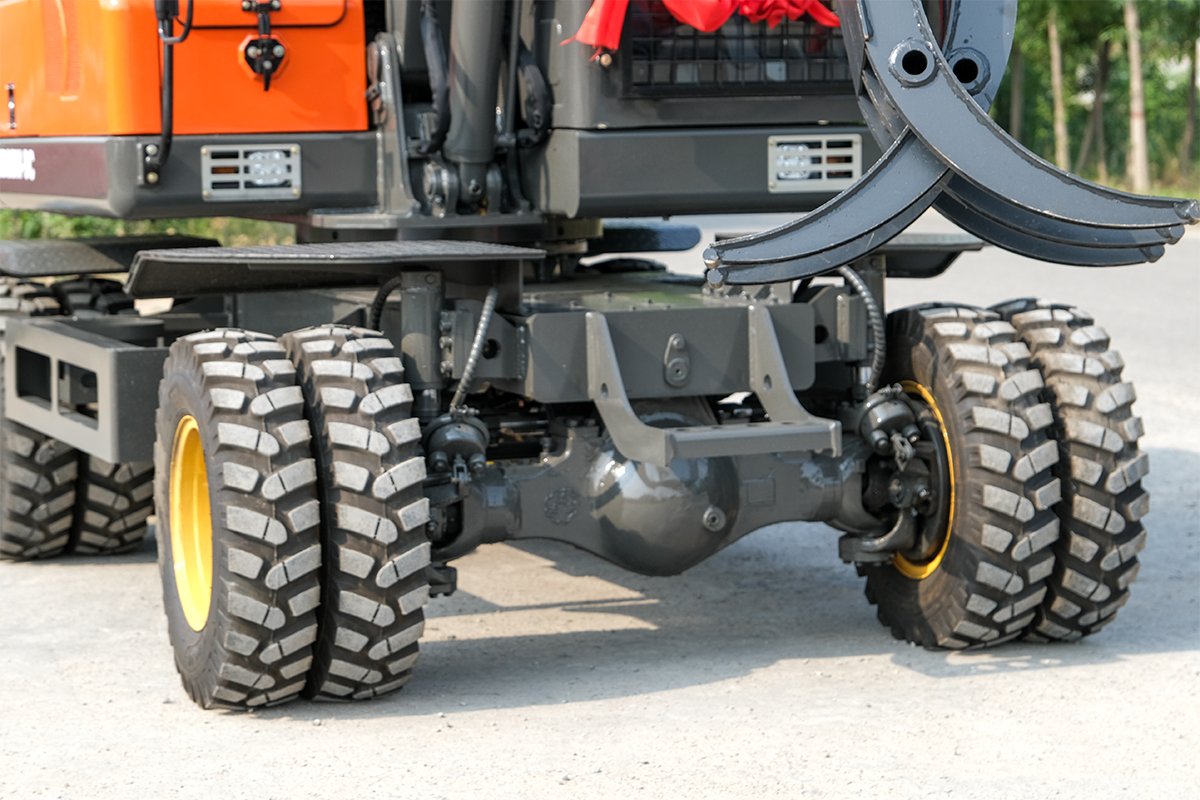

Smooth Mobility:
Its 825-16 tires, 2350mm wheelbase, and travel speed up to 35 km/h allow for rapid relocation between job sites, while maintaining excellent stability and maneuverability.
Technical Specifications:
-
Model: XG80W-9T
-
Engine Power: 48KW
-
Engine Model: Yuchai YC4DK65 – T303
-
Bucket Capacity: 0.3m³
-
Boom Length: 3400mm
-
Stick Length: 1900mm
-
Excavation Depth: 3350mm
-
Digging Height: 6400mm
-
Unloading Height: 4700mm
-
Excavation Radius: 6480mm
-
Tail Turning Radius: 1740mm
-
Radius of Gyration: 2288mm
-
Ground Clearance: 300mm
-
Gradient Capability: 30°
-
Platform Slewing Speed: 10.2 rpm
-
Travel Speed: 35 km/h
-
Hydraulic Pressure: 22 MPa
-
Bulldozer Blade Drop Depth: 290mm
-
Tire Type: 825-16
-
Main Pump: Imported Shimadzu
-
Main Valve: Imported EATON
Whether you’re working in urban environments or rugged terrain, the Shanding XG80W-9T delivers the performance, comfort, and durability you need to get the job done right.
